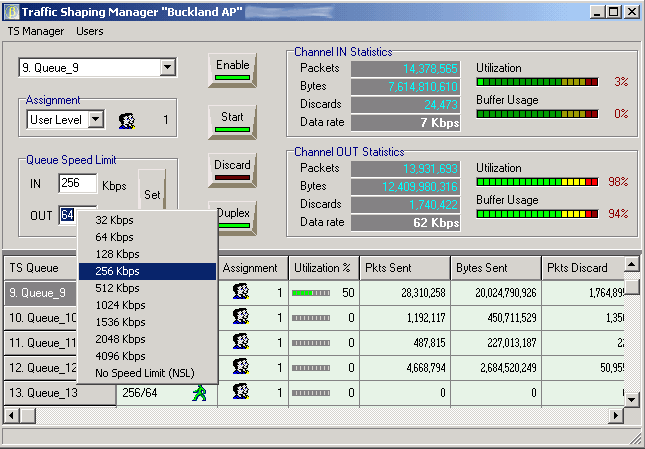

Speed limit, and queue membership are customizable rules for the Traffic Shaping service of BriLAN based WISP AP, available in Traffic Shaping Manager part.

BriLAN based device regulates packet transfer rate on ports or network nodes meeting the specific demands on the network throughput. Without limiting the packet transfer rate users can achieve traffic performance up to maximum speed of the wireless or Ethernet interface. Speed can limit data flow on a physical Port or logical group of Network Nodes.

Ports or Network Nodes can be defined by MAC or IP addresses in 128 independent Traffic Shaping Queues. All Queues with 512 Kb shared data buffer, working at user defined data speed limit, can be independently started or stopped.

Traffic shaping queues

128 queues available

Queue – speed limit

predefined (from 32 Kbps up to 4096 Kbps

custom assignment

Assignment

per physical port (up to 24 ports in one device)

per IP address (up to 128 user definable records of IP hosts and/or network addresses)

per MAC address (up to 2048 MAC addresses)

Other Features:

Queue Operation Status

Active – running based on settings

Inactive – keeps settings – queue in BYPASS mode

Discard – settings in Active mode – data will be blocked (discarded) for user

Statistical information:

Utilization of the queue

Buffer usage

Amount of data transferred, dropped (did not processed by queue – buffer overload)
